Nissan Versa (N17): System

Interior room lamp control system

INTERIOR ROOM LAMP CONTROL SYSTEM : System Diagram

WITH INTELLIGENT KEY

WITH INTELLIGENT KEY

WITHOUT INTELLIGENT KEY

WITHOUT INTELLIGENT KEY

INTERIOR ROOM LAMP CONTROL SYSTEM : System Description

OUTLINE

  • Interior room lamp* is controlled by the interior room lamp timer control function of the BCM.
  • Trunk room lamp is controlled by the trunk room lamp control function of the BCM.

The timer control functions of the BCM activate based on inputs from the key cylinder lock/unlock switch LH, the door switches, the key switch and door lock/unlock switches.

*Interior room lamp and map lamp (if equipped) (when lamp switch is in DOOR position).

ROOM LAMP TIMER OPERATION

When the interior room lamp switch is in the DOOR position and when all conditions below are met, the BCM begins timer control (maximum 30 seconds) for interior room lamp ON/OFF.

  • When the front door LH is unlocked with key fob, main power window and door lock/unlock switch, power window and door lock/unlock switch RH or front door lock assembly LH (key cylinder switch).
  • When a door opens → closes and the push-button ignition switch is not pressed (with Intelligent Key).
  • When a door opens → closes and the key is not inserted in the ignition switch (without Intelligent Key).

Timer control is cancelled under the following conditions.

  • When the front door LH is locked with key fob, main power window and door lock/unlock switch, power window and door lock/unlock switch RH or front door lock assembly LH (key cylinder switch).
  • A door is opened (door switch turns ON).
  • Ignition switch is turned ON.

Interior lamp operational settings can be changed with the function setting of CONSULT.

INTERIOR LAMP BATTERY SAVER CONTROL

If an interior lamp is left ON and does not turn OFF even when the doors are closed, the BCM turns off power to the interior lamps automatically to save the battery 10 minutes after the ignition switch is turned OFF.

The BCM controls power and ground to all interior lamps.

After the battery saver system turns the lamps OFF, the lamps will illuminate again when

  • a signal is received from a key fob, main power window and door lock/unlock switch, power window and door lock/unlock switch RH or when the front door lock assembly LH (key cylinder switch) is locked or unlocked
  • a door is opened or closed
  • the key is removed from or inserted into the ignition switch (without Intelligent Key).

The interior lamp battery saver control time period can be changed with the function setting of CONSULT.

Illumination control system

ILLUMINATION CONTROL SYSTEM : System Diagram

ILLUMINATION CONTROL SYSTEM : System

ILLUMINATION CONTROL SYSTEM : System Description

The illumination lamps operation is dependent upon the position of the combination switch (lighting and turn signal switch). When the combination switch (lighting and turn signal switch) is placed in the 1ST or 2ND position the BCM (body control module) receives input requesting the parking lamps to illuminate. This input is communicated to the IPDM E/R (intelligent power distribution module engine room) via the CAN communication lines. The CPU (central processing unit) of the IPDM E/R controls the tail lamp relay coil. When energized, this relay directs power to the parking and illumination lamps, which then illuminate.

BATTERY SAVER CONTROL

When the combination switch (lighting and turn signal switch) is in the 1st or 2nd position and the ignition switch is turned from ON or ACC to OFF, the battery saver control feature is activated. Under this condition, the illumination lamps remain illuminated for 10 minutes unless the combination switch (lighting and turn signal switch) position is changed. If the combination switch (lighting and turn signal switch) position is changed, then the illumination lamps are turned off after a 15 second delay. When the combination switch (lighting and turn signal switch) is turned from OFF to 1st or 2nd position after illumination lamps have been turned off by the battery saver control, the illumination lamps illuminate again.

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

APPLICATION ITEM

SYSTEM APPLICATION

BCM can perform the following functions.

SYSTEM APPLICATION

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

*: Initial setting

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

*: Initial setting

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

SELF DIAGNOSTIC RESULT

Refer to BCS "DTC Index".

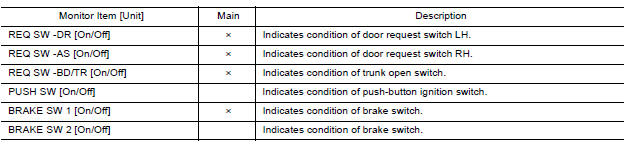

DATA MONITOR

DATA MONITORDATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

*: Initial Setting

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

*: Initial setting

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

APPLICATION ITEM

SYSTEM APPLICATION

BCM can perform the following functions.

SYSTEM APPLICATION

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

* : Initial setting

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

* : Initial setting

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

WORK SUPPORT

WORK SUPPORT

* : Initial setting

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

WITH INTELLIGENT KEY

ECU Reference
BCM BCS "Reference Value"
BCS "Fail-safe"
BCS "DTC Inspection Priority Chart"
BCS "DTC Index"

WITHOUT INTELLIGENT KEY

ECU Reference
BCM BCS "Reference Value"
BCS "Fail-safe"
BCS "DTC Inspection Priority Chart"
BCS "DTC Index"

WIRING DIAGRAM

INTERIOR ROOM LAMP CONTROL SYSTEM

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

ILLUMINATION

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

BASIC INSPECTION

Diagnosis and repair workflow

Work Flow OVERALL SEQUENCE DETAILED FLOW 1.INTERVIEW FOR MALFUNCTION Interview the symptom to the customer. >> GO TO 2. 2.SYMPTOM CHECK Check the symptom from the customer's informati ...
