Nissan Versa

 Sedan Service Manual

Transmission & driveline » Transaxle & transmission (TM)
Service data and specifications (SDS)

General Specification

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-3. Do not mix with other fluid.
• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) warranty

*1: Refer to MA "Fluids and Lubricants".

*2: The CVT fluid capacity is the reference value.

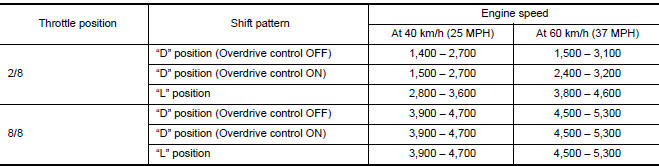

Shift Characteristics

CAUTION: Lock-up is engaged at the vehicle speed of approximately 10 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

Line Pressure

Torque Converter

Heater Thermostat
