Nissan Versa (N17): High-mounted stop lamp

Exploded View

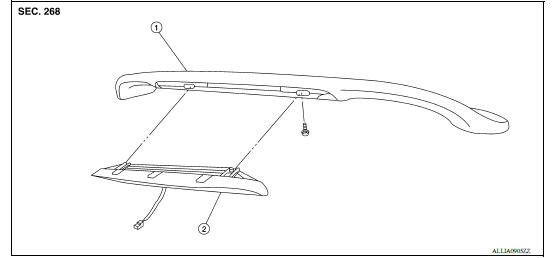

Rear Spoiler

Rear Spoiler

1. Rear spoiler 2. High-mounted stop lamp assembly

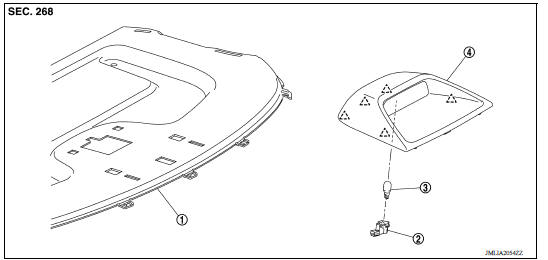

Rear Parcel Shelf

Rear Parcel Shelf

1. Rear parcel shelf finisher 2. High-mounted stop lamp socket 3. High-mounted stop lamp bulb 4. High-mounted stop lamp housing Pawl

Removal and Installation

HIGH-MOUNTED STOP LAMP - REAR SPOILER

Removal

1. Remove the rear spoiler. Refer to EXT "Removal and Installation".

2. Remove screws and the high-mounted stop lamp.

Installation

Installation is in the reverse order of removal.

HIGH-MOUNTED STOP LAMP - PARCEL SHELF

Removal

1. Fully open trunk lid assembly.

2. Rotate the bulb socket counterclockwise.

3. Release high-mounted stop lamp pawls and remove high-mounted stop lamp housing.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

WARNING: Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

  • Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
  • Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

HIGH-MOUNTED STOP LAMP BULB - REAR SPOILER

The high-mounted stop lamp bulb is a LED and is integrated into the high-mounted stop lamp and is serviced as an assembly. Refer to EXL "Removal and Installation".

HIGH-MOUNTED STOP LAMP BULB - PARCEL SHELF

Removal

1. Fully open trunk lid assembly.

2. Rotate the bulb socket counterclockwise and remove.

3. Remove the bulb from the bulb socket.

Installation

Installation is in the reverse order of removal.
