Nissan Versa (N17): Diagnosis system (combination meter)

Nissan Versa 2nd generation (N17) Service Manual / Driver information & multimedia / Warning chime system (WCS) / Diagnosis system (combination meter)

Type A

TYPE A : Diagnosis Description

ON BOARD DIAGNOSIS ITEM

The information display, speedometer and tachometer can be checked in self-diagnosis mode.

NOTE:

  • Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to MWI "COMBINATION METER : Diagnosis Procedure". Replace combination meter if power supply and ground circuits are found to be normal and self-diagnosis mode does not start. Refer to MWI "Removal and Installation".
  • Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter selfdiagnosis mode will exit upon turning the ignition switch to OFF.

METHOD OF STARTING

1. Turn the ignition switch OFF.

2. Turn the ignition switch ON while pressing and holding the switch (1) for 0.8 seconds or more.

METHOD OF STARTING

3. Press the switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

4. The combination meter is turned to self-diagnosis mode.

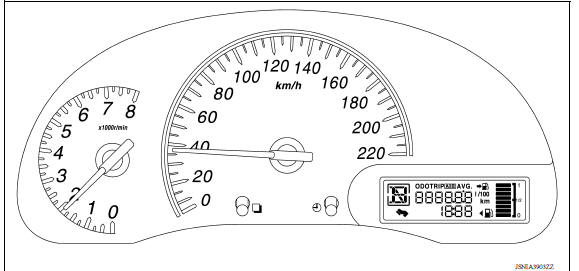

- All segments of the information display are displayed.

METHOD OF STARTING

5. Each meter activates by pressing the switch.

METHOD OF STARTING

NOTE:

  • If any of the meters or gauges is not activated, replace combination meter.
  • The figure is reference.

TYPE A : CONSULT Function

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

APPLICATION ITEMS

SELF DIAG RESULT

Refer to MWI "DTC Index".

DATA MONITOR

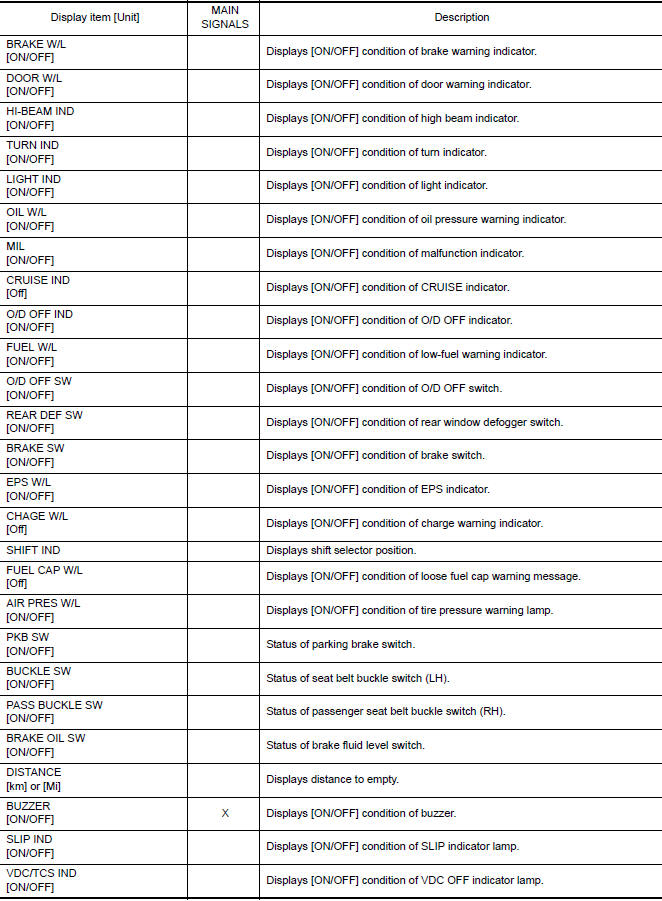

Display Item List

Display Item List

Display Item List

NOTE:  Some items are not available according to vehicle specification.

SPECIAL FUNCTION

Special menu

W/L ON HISTORY

  • Stores histories when warning/indicator lamp is turned on.
  • "W/L ON HISTORY" indicates the "TIME" when the warning/ indicator lamp is turned on.
  • The "TIME" above is:

- 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine and waiting for 30 seconds.

- 1 - 39: The number of times the engine was restarted after the 0 condition.

- NO W/L ON HISTORY: Stores NO (0) turning on history of warning/indicator lamp.

NOTE:

  • W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.
  • Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets low.

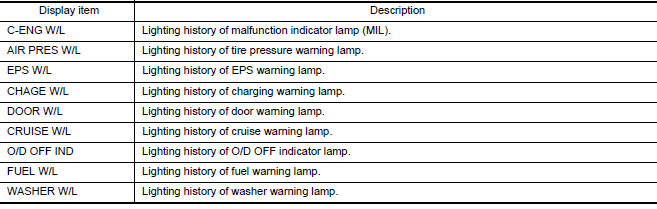

Display Item

Display Item

Type B

TYPE B : Diagnosis Description

COMBINATION METER SELF-DIAGNOSIS MODE

The information display, speedometer and tachometer can be checked in self-diagnosis mode.

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

NOTE:

  • Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to MWI "COMBINATION METER : Diagnosis Procedure". Replace combination meter if power supply and ground circuits are found to be normal and self-diagnosis mode does not start. Refer to MWI "Removal and Installation".
  • Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter selfdiagnosis mode will exit upon turning the ignition switch to OFF.

How to Initiate Self-Diagnosis Mode

1. Turn ignition switch ON, press the odo/trip meter switch (1) to "trip A" or "trip B".

2. Turn ignition switch to OFF.

3. Continue holding the odo/trip meter switch (1) and turn the ignition switch ON.

4. Verify the trip meter displays "0000.0".

5. Press the meter control switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON).

How to Initiate Self-Diagnosis Mode

6. The combination meter self-diagnosis mode is activated.

- Verify all segments of the information display and shift position indicator (A) for CVT models are displayed.

How to Initiate Self-Diagnosis Mode

7. Each meter activates by pressing the meter control switch.

How to Initiate Self-Diagnosis Mode

NOTE:

  • If any of the meters or gauges is not activated, replace combination meter.
  • The figure is reference.

TYPE B : CONSULT Function

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

SELF DIAG RESULT

Refer to MWI "DTC Index".

DATA MONITOR

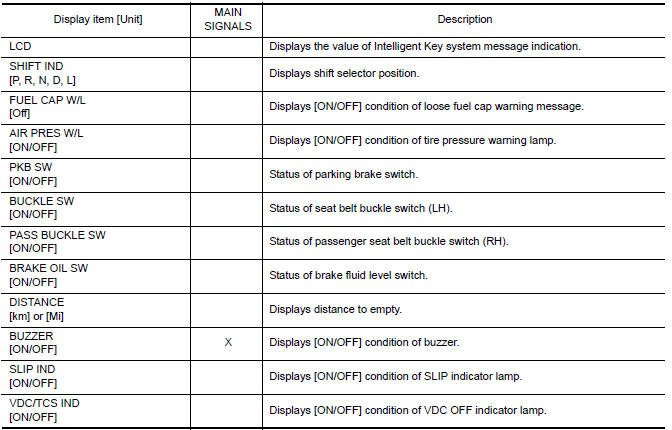

Display Item List

Display Item List

Display Item List

NOTE: Some items are not available according to vehicle specification.

SPECIAL FUNCTION

Special menu

W/L ON HISTORY

  • Stores histories when warning/indicator lamp is turned on.
  • "W/L ON HISTORY" indicates the "TIME" when the warning/ indicator lamp is turned on.
  • The "TIME" above is:

- 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine and waiting for 30 seconds.

- 1 - 39: The number of times the engine was restarted after the 0 condition.

- NO W/L ON HISTORY: Stores NO (0) turning on history of warning/indicator lamp.

NOTE:

  • W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.
  • Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets low.

Display Item

Display Item

Display Item

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

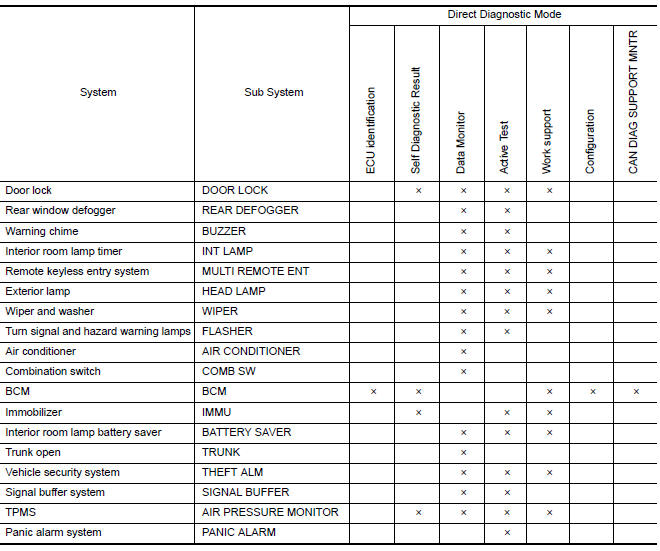

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

APPLICATION ITEM

SYSTEM APPLICATION

BCM can perform the following functions.

SYSTEM APPLICATION

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

APPLICATION ITEM

SYSTEM APPLICATION

BCM can perform the following functions.

SYSTEM APPLICATION

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

DATA MONITOR

DATA MONITOR

ACTIVE TEST

ACTIVE TEST

ECU DIAGNOSIS INFORMATION

BCM, COMBINATION METER

List of ECU Reference

ECU Reference
BCM (with Intelligent Key) BCS "Reference Value"
BCS "Fail-safe"
BCS "DTC Inspection Priority Chart"
BCS "DTC Index"
BCM (without Intelligent Key) BCS "Reference Value"
BCS "Fail-safe"
BCS "DTC Inspection Priority Chart"
BCS "DTC Index"
COMBINATION METER (TYPE A) MWI"Reference Value"
MWI "Fail-Safe"
MWI "DTC Index"
COMBINATION METER (TYPE B) MWI"Reference Value"
MWI "Fail-Safe"
MWI "DTC Index"

WIRING DIAGRAM

WARNING CHIME SYSTEM

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

BASIC INSPECTION

Diagnosis and repair workflow

Work Flow OVERALL SEQUENCE DETAILED FLOW 1.OBTAIN INFORMATION ABOUT SYMPTOM Interview the customer to obtain as much information as possible about the conditions and environment under whic ...
