Nissan Versa (N17): Diagnosis system (combination meter)

Nissan Versa 2nd generation (N17) Service Manual / Driver information & multimedia / Meter, warning lamp & indicator (MWI) / Diagnosis system (combination meter)

Diagnosis Description

ON BOARD DIAGNOSIS ITEM

The information display, speedometer and tachometer can be checked in self-diagnosis mode.

NOTE:

  • Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to MWI "COMBINATION METER : Diagnosis Procedure". Replace combination meter if power supply and ground circuits are found to be normal and self-diagnosis mode does not start. Refer to MWI "Removal and Installation".
  • Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter selfdiagnosis mode will exit upon turning the ignition switch to OFF.

METHOD OF STARTING

1. Turn the ignition switch OFF.

2. Turn the ignition switch ON while pressing and holding the switch (1) for 0.8 seconds or more.

METHOD OF STARTING

3. Press the switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

4. The combination meter is turned to self-diagnosis mode.

  • All segments of the information display are displayed.

METHOD OF STARTING

5. Each meter activates by pressing the switch.

METHOD OF STARTING

NOTE:

  • If any of the meters or gauges is not activated, replace combination meter.
  • The figure is reference.

Consult Function

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

SELF DIAG RESULT

Refer to MWI "DTC Index".

DATA MONITOR

Display Item List

Display Item List

Display Item List

NOTE: Some items are not available according to vehicle specification.

SPECIAL FUNCTION

Special menu

W/L ON HISTORY

  • Stores histories when warning/indicator lamp is turned on.
  • "W/L ON HISTORY" indicates the "TIME" when the warning/ indicator lamp is turned on.
  • The "TIME" above is:

- 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine and waiting for 30 seconds.

- 1 - 39: The number of times the engine was restarted after the 0 condition.

- NO W/L ON HISTORY: Stores NO (0) turning on history of warning/indicator lamp.

NOTE:

  • W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.
  • Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets low.

Display Item

Display Item

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

VALUES ON THE DIAGNOSIS TOOL

VALUES ON THE DIAGNOSIS TOOL

VALUES ON THE DIAGNOSIS TOOL

*: Displays "OFF" if the brake warning lamp is illuminated when the valve check starts, the parking brake switch is turned ON or the brake fluid level switch is turned ON.

NOTE: Some items are not available according to vehicle specification.

TERMINAL LAYOUT

TERMINAL LAYOUT

PHYSICAL VALUES

PHYSICAL VALUES

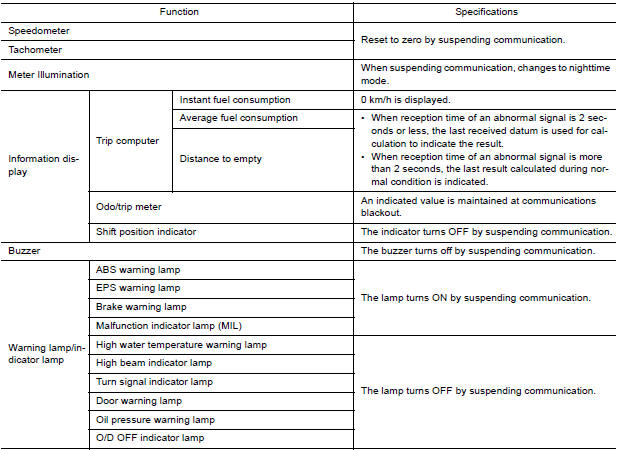

Fail-Safe

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

Fail-Safe

DTC Index

DTC Index

BCM (BODY CONTROL MODULE)

List of ECU Reference

ECU Reference
BCM BCS "Reference Value"
BCS "Wiring Diagram"
BCS "Fail-safe"
BCS "DTC Inspection Priority Chart"
BCS "DTC Index"

WIRING DIAGRAM

METER SYSTEM

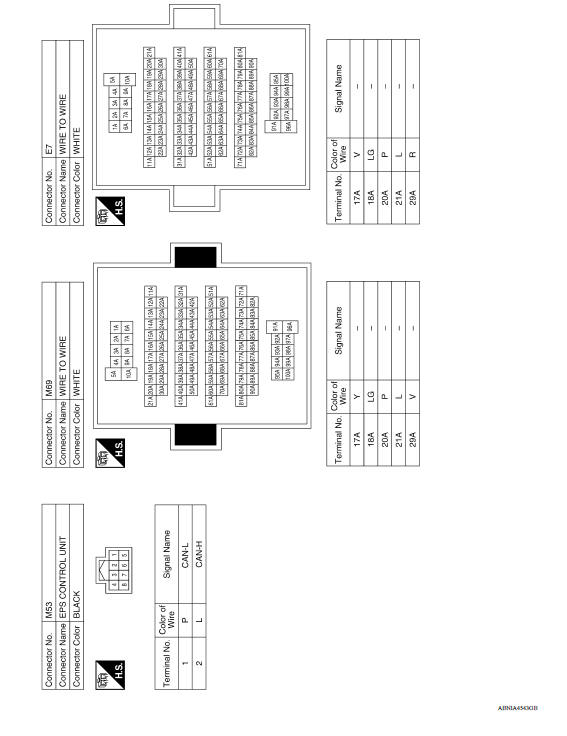

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

BASIC INSPECTION

Diagnosis and repair workflow

Work Flow OVERALL SEQUENCE DETAILED FLOW 1.CONFIRM SYMPTOM Confirm symptom or customer complaint. >> GO TO 2 2.SELF-DIAGNOSIS OF COMBINATION METER Perform self-diagnosis of combinat ...
